Hey there! As a condensing unit supplier, I often get questions from customers about their units acting up. One of the most common issues I hear about is water leakage. It can be a real headache, but don't worry—I'm here to break down why this might be happening and what you can do about it.
1. Normal Condensation
First off, let's talk about normal condensation. It's completely normal for a condensing unit to produce some water during its operation. When the refrigerant inside the unit cools down the air, it removes moisture from it. This moisture then condenses into water droplets. You can think of it like when you take a cold drink out of the fridge on a hot day—the outside of the glass gets all wet. That's condensation at work.
Most of the time, the water that forms should drain away properly through a condensate drain line. If you notice a small amount of water pooling around the base of the unit, it could just be this normal condensation. However, if there's a lot of water or if it's not draining as it should, that's when you've got a problem.
2. Clogged Drain Line
A clogged drain line is one of the most common reasons for excessive water leakage. Over time, dirt, debris, and even mold can build up in the drain line, blocking the flow of water. When this happens, the water has nowhere to go, so it starts to leak out of the unit.
To check if your drain line is clogged, you can look for signs of water backing up or a musty smell near the unit. If you suspect a clog, you can try using a wet - dry vacuum to suck out the blockage. Or, if it's really stubborn, you might need to use a pipe cleaner or a small snake to clear it.
3. Damaged Drain Pan
The drain pan is another component that can cause water leakage. This pan is designed to collect the condensed water and direct it to the drain line. But if it gets cracked or damaged, the water can leak out onto the floor.
Inspect the drain pan regularly for any signs of cracks or holes. If you find damage, you'll need to replace the drain pan. It's not the most difficult job, but if you're not comfortable doing it yourself, you can always call in a professional.
4. Low Refrigerant Levels
Believe it or not, low refrigerant levels can also lead to water leakage. When there's not enough refrigerant in the system, the evaporator coil can get too cold. This causes ice to form on the coil. As the ice melts, it can create more water than the drain system can handle, resulting in leakage.
If you suspect low refrigerant levels, it's important to have a professional technician check and recharge the system. Refrigerant is a hazardous substance, so it's not something you should try to handle on your own.
5. Improper Installation
Sometimes, the problem can be traced back to the installation of the condensing unit. If the unit is not installed level, the water may not drain properly. Also, if the drain line is not sloped correctly, it can cause water to pool and eventually leak.
If you think improper installation might be the issue, it's best to have a professional come and take a look. They can make the necessary adjustments to ensure the unit is installed correctly and the water drains as it should.
6. Dirty Condenser Coils
Dirty condenser coils can also contribute to water leakage. When the coils are dirty, the unit has to work harder to cool the air. This can cause the evaporator coil to get too cold and ice up, leading to the same issues as low refrigerant levels.
To keep your condenser coils clean, you can use a soft brush or a coil cleaner to remove dirt and debris. Regular maintenance of the coils can help prevent this problem from occurring.
7. Malfunctioning Fan
The fan in the condensing unit plays an important role in the cooling process. If the fan is not working properly, it can affect the airflow and cause the unit to overheat. This can lead to ice formation on the evaporator coil and subsequent water leakage.
Check the fan to make sure it's spinning freely and that there are no loose or damaged parts. If you find any issues with the fan, it might need to be repaired or replaced.
Solutions and Related Products
Now that we've covered the possible causes of water leakage, let's talk about some solutions and related products. If you're in the market for a new condensing unit or related components, we've got some great options.
For example, our Dual Discharge Air Cooler is a high - performance product that can help improve the efficiency of your cooling system. It's designed to provide better airflow and cooling, which can reduce the chances of water leakage due to improper cooling.

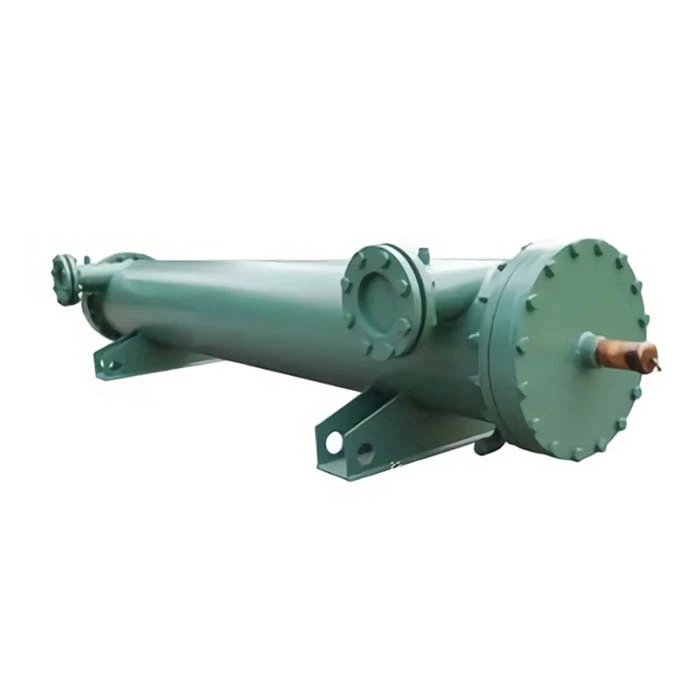

Another option is our Shell And Coil Evaporator. This evaporator is built to last and can handle high - load applications. It's also designed with proper drainage in mind, which can help prevent water from pooling and leaking.
And if you're looking for a reliable condenser, our Compact V - Cabinet Air Condenser – Engineered For Reliability is a great choice. It's engineered to provide consistent performance and efficient cooling, reducing the risk of problems that can lead to water leakage.
Contact Us for Purchase and Consultation
If you're experiencing water leakage issues with your condensing unit or if you're interested in purchasing any of our products, we're here to help. Our team of experts can provide you with more information about our products, offer advice on troubleshooting, and assist you with the purchasing process.
Don't let water leakage ruin your day. Take action now and ensure your condensing unit is working at its best.
References
- "HVAC Systems: Operation, Maintenance, and Troubleshooting" by Steven A. Taylor
- "Refrigeration and Air Conditioning Technology" by William M. Whitman, William C. Johnson, and John Tomczyk
