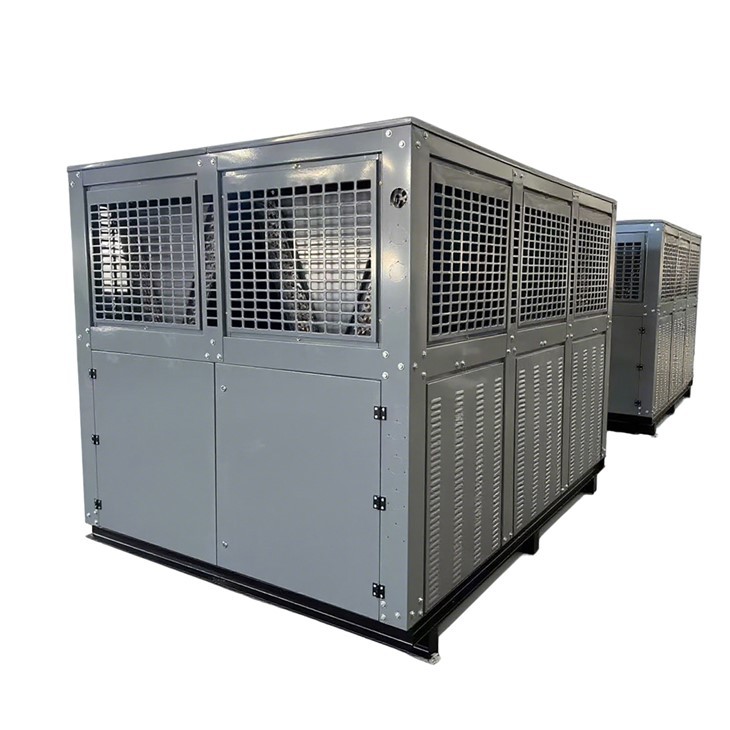

Double V-Type Air Cooled Condenser – High-Efficiency, Large Capacity Cooling Solution
Design & Structure Highlights

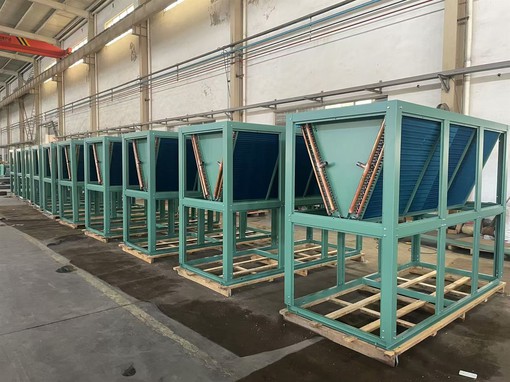

The Double V-type Air Cooled Condenser is designed to deliver superior performance in medium to large refrigeration systems. Its innovative VV (W-shaped) structure allows for enhanced thermal exchange in a space-saving design. This configuration is ideal for high-capacity cooling needs where efficiency and reliability are essential.
Key Features
VV-shaped Configuration: Two V-shaped modules are combined to form a compact but large-capacity W-like structure, significantly increasing heat dissipation area without expanding floor space.
High-Quality Components: Constructed with seamless inner-grooved copper tubes and corrugated aluminum fins for optimal heat transfer and corrosion resistance.
Axial Fans: Equipped with multiple energy-efficient axial fans for strong airflow and low noise, with optional EC fans for higher efficiency.

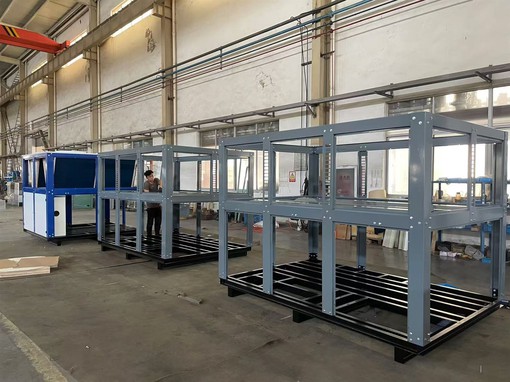

Robust Frame: Heavy-duty galvanized steel or aluminum alloy casing with anti-corrosion coating, suitable for outdoor environments.
Easy Maintenance: Modular design allows convenient access for cleaning and maintenance of coils and fan motors.
Customizable Specs: Coil size, fan number, voltage, refrigerant compatibility (R404a, R134a, R507, etc.) can be tailored to your system requirements.
Advantages
Space-efficient large-scale heat rejection
Reliable performance under continuous load
Flexible installation with vertical or horizontal air discharge
Fast lead time and full factory inspection support
OEM/ODM, 3D drawing, and trial orders accepted
Applications
Cold storage warehouses
Food and beverage processing plants
Supermarket refrigeration systems
Industrial process cooling
Logistic and distribution centers
|
Model |
Heat exchange capacity(KW) |
Heat exchange area(m2) |
Fan |
Connection pipe(mm) |
Dimension(mm) |
||||||||
|
Power(W) |
Diameter |
Air flow(m3/h) |
Voltage |
Inlet |
Outlet |
A |
B |
C |
D |
E |
|||
|
FNVT-17.7/60 |
17.7 |
60 |
2*180 |
Φ400 |
6000 |
380 |
22 |
16 |
1090 |
800 |
1280 |
1060 |
530 |
|
FNVT-23.6/80 |
23.6 |
80 |
2*250 |
Φ450 |
9000 |
380 |
25 |
19 |
1300 |
800 |
1330 |
1270 |
530 |
|
FNVT-29.5/100 |
29.5 |
100 |
2*450 |
Φ500 |
12000 |
380 |
25 |
19 |
1340 |
850 |
1430 |
1310 |
580 |
|
FNVT-35.4/120 |
35.4 |
120 |
2*450 |
Φ500 |
12000 |
380 |
25 |
19 |
1340 |
850 |
1530 |
1310 |
580 |
|
FNVT-41.3/140 |
41.3 |
140 |
2*600 |
Φ550 |
16000 |
380 |
28 |
19 |
1520 |
900 |
1530 |
1490 |
630 |
|
FNVT-44.3/160 |
44.3 |
160 |
2*750 |
Φ600 |
20000 |
380 |
28 |
22 |
1720 |
950 |
1530 |
1690 |
680 |
|
FNVT-47/180 |
47 |
180 |
2*750 |
Φ600 |
20000 |
380 |
28 |
22 |
1720 |
950 |
1630 |
1690 |
680 |
|
FNVT-52.5/200 |
52.5 |
200 |
2*800 |
Φ630 |
24000 |
380 |
28 |
22 |
1850 |
1000 |
1630 |
1820 |
730 |
|
FNVT-58.5/220 |
58.5 |
220 |
2*800 |
Φ630 |
24000 |
380 |
32 |
22 |
2000 |
1000 |
1630 |
1970 |
730 |
|
FNVT-64.5/240 |
64.5 |
240 |
3*600 |
Φ550 |
24000 |
380 |
32 |
22 |
2200 |
950 |
1630 |
2170 |
680 |
|
FNVT-70.5/260 |
70.5 |
260 |
3*750 |
Φ600 |
30000 |
380 |
32 |
22 |
2400 |
950 |
1630 |
2370 |
680 |
|
FNVT-76/280 |
76 |
280 |
3*750 |
Φ600 |
30000 |
380 |
35 |
28 |
2500 |
950 |
1630 |
2470 |
680 |
|
FNVT-82.5/300 |
82.5 |
300 |
3*800 |
Φ630 |
36000 |
380 |
35 |
28 |
2500 |
1000 |
1780 |
2470 |
730 |
|
FNVT-88.5/320 |
88.5 |
320 |
3*800 |
Φ630 |
36000 |
380 |
35 |
28 |
2650 |
1000 |
1780 |
2620 |
730 |
|
FNVT-97.3/360 |
97.3 |
360 |
3*800 |
Φ630 |
36000 |
380 |
42 |
28 |
2650 |
1100 |
1880 |
2620 |
830 |
|
FNVT-112/400 |
112 |
400 |
4*750 |
Φ600 |
40000 |
380 |
42 |
28 |
3200 |
1000 |
1780 |
3170 |
730 |
|
FNVT-136/480 |
136 |
480 |
4*750 |
Φ630 |
48000 |
380 |
54 |
28 |
3500 |
1100 |
1880 |
3470 |
830 |
Conclusion
This condenser is an ideal solution for demanding cooling projects. With our 30+ years of manufacturing experience and five workshops, we ensure every unit meets the highest standards of quality and performance. Contact us for specifications or customized proposals.
FAQ
Q1: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
Q2: Which certificate do you have?
A: ISO9001.
Q3: Do you have the test and audit service?
A: Yes, we can assist to get the designated test report for product and the designated factory audit report.
Q4: What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
Q5: Can you provide the FBA shipping service?
A: Yes, we have the good experience in providing the professional FBA service.
