Customized H Type Single Fan Air-Cooled Condenser
Features
H-Frame Structure: Upright construction improves airflow efficiency and keeps the condenser compact for narrow installation areas.
High-Efficiency Coil: Copper-tube/aluminum-fin heat exchanger ensures fast heat transfer and stable condensing pressure.
Reliable Fan Motor: Available with external rotor or EC fan options for strong airflow and low energy consumption.
Durable Housing: Powder-coated galvanized steel provides excellent corrosion resistance for outdoor operation.
Flexible Refrigerant Options: Compatible with R404A, R448A, R449A, R134a, R507, and other refrigerants.
Easy Maintenance: Simple fan access and coil cleaning design for quick servicing.
Applications
Small and medium cold rooms
Supermarket display cabinets & showcase cooling
Kitchen refrigeration and storage rooms
Ice machines and beverage cooling systems
Small condensing units for commercial refrigeration
Projects requiring compact and efficient condenser solutions
Advantages
Compact size with strong performance, ideal for space-limited installations
Stable cooling efficiency with balanced airflow and optimized coils
Low noise & low energy consumption with optional EC fans
Long service life with reinforced casing and anti-corrosion design
Flexible customization for capacity, fan type, and coil configuration

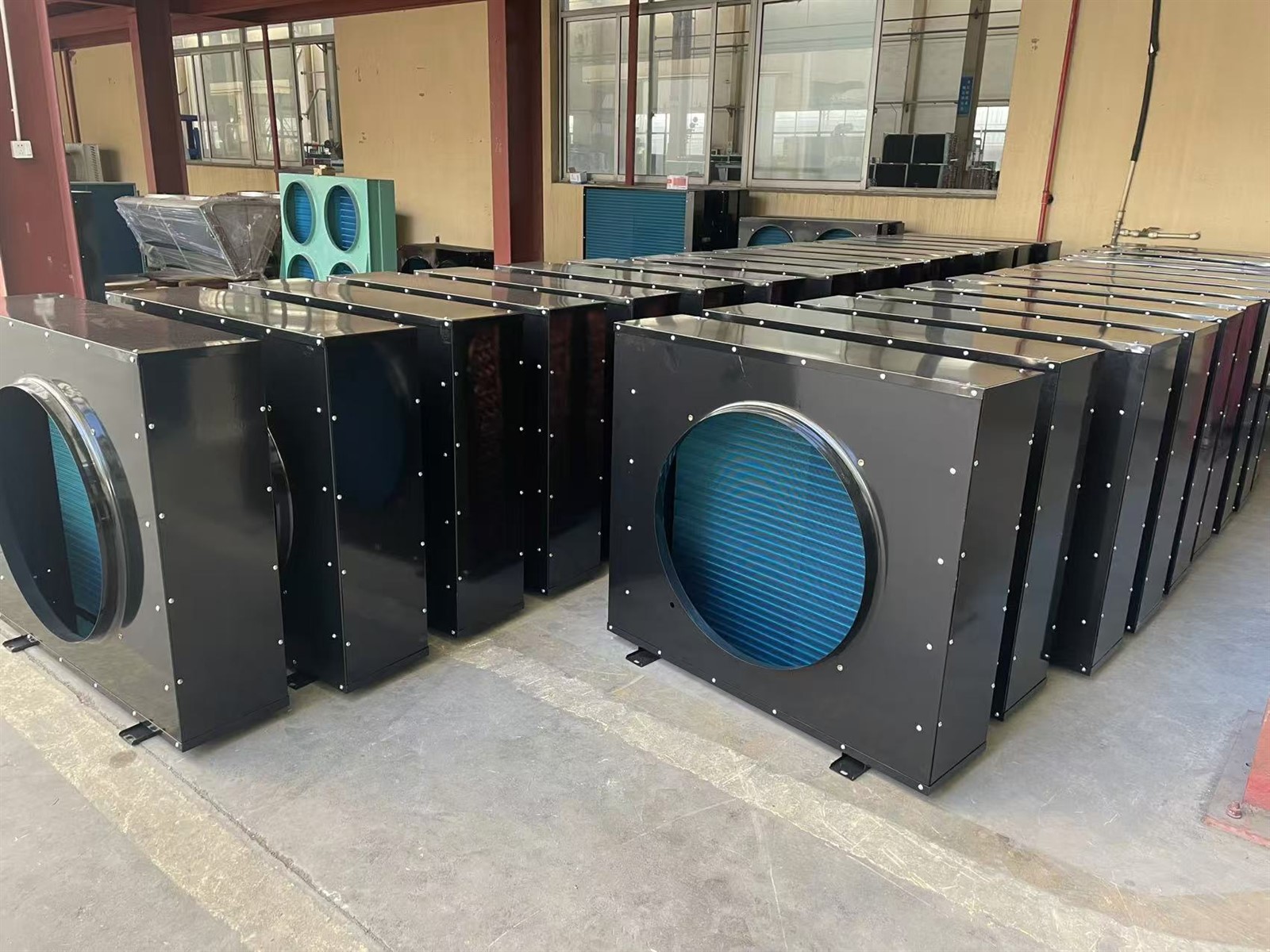

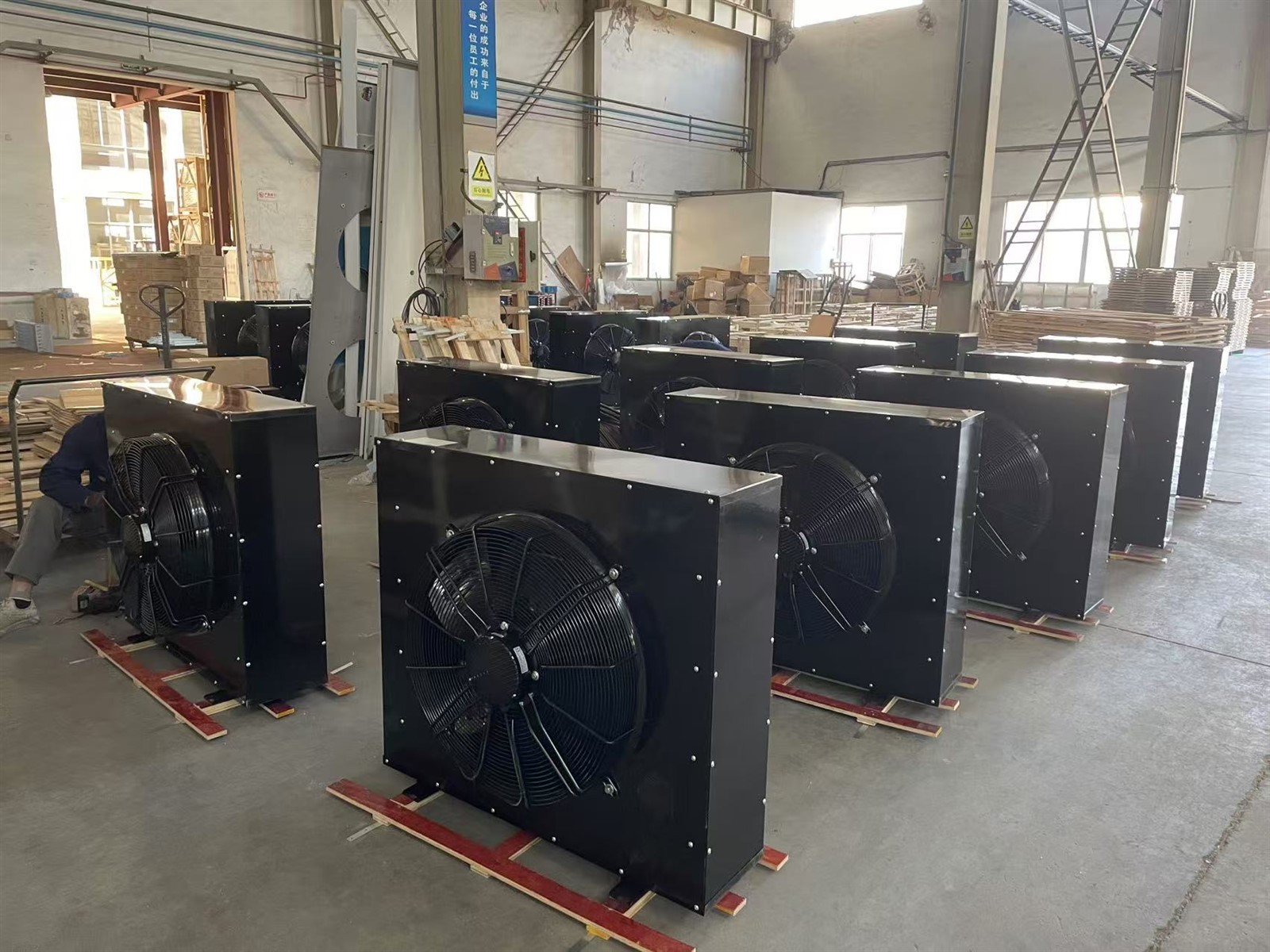

PRODUCT DISPLAY
|
Model |
Heat exchange capacity(KW) |
Number of coils |
Heat exchange area(m2) |
Fan |
Connection pipe(mm) |
Dimension |
Installation dimension |
|||||
|
Power(W) |
Diameter |
Air flow(m3/h) |
Voltage |
Inlet |
Outlet |
A*B*C |
D |
E |
||||
|
FNH-0.6/2.1 |
0.6 |
2*4 |
2.1 |
1*35 |
Φ200 |
430 |
220 |
10 |
10 |
280*120*240 |
280 |
60 |
|
FNH-1.0/3.4 |
1 |
3*4 |
3.4 |
1*35 |
Φ200 |
430 |
220 |
10 |
10 |
280*120*240 |
280 |
60 |
|
FNH-1.5/5.0 |
1.5 |
3*5 |
5.0 |
1*60 |
Φ250 |
910 |
220 |
10 |
10 |
325*120*290 |
325 |
60 |
|
FNH-1.7/5.7 |
1.7 |
3*6 |
5.7 |
1*75 |
Φ300 |
1530 |
220 |
10 |
10 |
370*130*340 |
370 |
70 |
|
FNH-2.2/8 |
2.2 |
4*6 |
8 |
1*75 |
Φ300 |
1530 |
220 |
12 |
12 |
370*150*340 |
370 |
90 |
|
FNH-3.5/12 |
3.5 |
4*8 |
12 |
1*120 |
Φ350 |
1800 |
220/380 |
16 |
16 |
430*180*430 |
420 |
120 |
|
FNH-4.4/15 |
4.4 |
4*9 |
15 |
1*120 |
Φ350 |
1800 |
220/380 |
16 |
16 |
480*180*480 |
470 |
120 |
|
FNH-5.4/18 |
5.4 |
4*10 |
18 |
1*180 |
Φ400 |
3000 |
220/380 |
16 |
16 |
520*180*530 |
510 |
120 |
|
FNH-6.7/22A |
6.7 |
5*10 |
22 |
1*180 |
Φ400 |
3000 |
220/380 |
16 |
16 |
520*200*530 |
510 |
140 |
|
FNH-6.7/22B |
6.7 |
4*8 |
22 |
2*120 |
Φ350 |
3600 |
380 |
16 |
16 |
820*180*430 |
805 |
120 |
|
FNH-8.3/28 |
8.3 |
4*9 |
28 |
2*120 |
Φ350 |
3600 |
380 |
16 |
16 |
880*180*480 |
865 |
120 |
|
FNH-9.8/33 |
9.8 |
4*10 |
33 |
2*180 |
Φ400 |
6000 |
380 |
16 |
16 |
930*180*530 |
915 |
120 |
|
FNH-12.5/41 |
12.5 |
4*12 |
41 |
2*180 |
Φ400 |
6000 |
380 |
19 |
16 |
930*180*630 |
915 |
120 |
|
FNH-14.8/49 |
14.8 |
5*12 |
49 |
2*180 |
Φ400 |
6000 |
380 |
19 |
16 |
930*200*630 |
915 |
140 |
|
FNH-16/55 |
16 |
4*14 |
55 |
2*180 |
Φ400 |
6000 |
380 |
19 |
16 |
1100*200*730 |
1085 |
140 |
|
FNH-17/60 |
17 |
4*14 |
60 |
2*250 |
Φ450 |
9000 |
380 |
19 |
16 |
1140*200*730 |
1125 |
140 |
|
FNH-20/70 |
20 |
4*18 |
70 |
4*120 |
Φ350 |
7200 |
380 |
25 |
19 |
1140*200*930 |
1125 |
140 |
|
FNH-23/80 |
23 |
4*20 |
80 |
4*180 |
Φ400 |
12000 |
380 |
25 |
19 |
1140*200*1030 |
1125 |
140 |
|
FNH-29/100 |
29 |
5*20 |
100 |
4*180 |
Φ400 |
12000 |
380 |
25 |
19 |
1140*200*1030 |
1125 |
140 |
|
FNH-32/110 |
32 |
5*22 |
110 |
4*180 |
Φ400 |
12000 |
380 |
32 |
19 |
1140*200*1130 |
1125 |
140 |
|
FNH-35/120 |
35 |
5*24 |
120 |
4*180 |
Φ400 |
12000 |
380 |
32 |
19 |
1140*200*1230 |
1125 |
140 |
|
FNH-41/140 |
41 |
5*26 |
140 |
4*250 |
Φ450 |
18000 |
380 |
32 |
19 |
1180*200*1330 |
1165 |
160 |
|
FNH-43.5/150 |
43.5 |
5*24 |
150 |
4*250 |
Φ450 |
18000 |
380 |
32 |
25 |
1350*240*1230 |
1335 |
180 |
|
FNH-46.4/160 |
46.4 |
5*24 |
160 |
4*450 |
Φ500 |
24000 |
380 |
32 |
25 |
1450*240*1230 |
1435 |
180 |
|
FNH-52.2/180 |
52.2 |
5*24 |
180 |
4*450 |
Φ500 |
24000 |
380 |
35 |
25 |
1450*240*1230 |
1435 |
180 |
|
FNH-58/200 |
58 |
5*24 |
200 |
4*450 |
Φ500 |
24000 |
380 |
35 |
25 |
1500*240*1230 |
1485 |
180 |
Our Service
1.More Professional service in Packaging and printing products exporting field
2.Better manufacture ability
3.Various payment term to choose:T/T,Western Union,L/C,Paypal
4.High quality/Safe material/Competitive price
5.Small order available
6.Quickly response
7.More safe and fast transport
8.OEM design for all customers
Packaging & Shipping
● Packaging
1. One piece in one carry bag
2. Suitable quantity to an export carton
3. No other packing accessories in regular
4. Customer required packing is available
● Shipping: by air, sea, or express
● Sample lead time: 5~7 days
● Delivery time: about 15-20 days after order details and production confirmed.
Conclusion
The H Type Air Cooled Condenser is your ideal choice for high-capacity, efficient, and long-lasting heat rejection in large refrigeration systems. Its powerful cooling performance, robust structure, and flexible design make it a reliable solution for industrial applications. Contact us now for detailed specifications, engineering drawings, or a personalized quotation.
